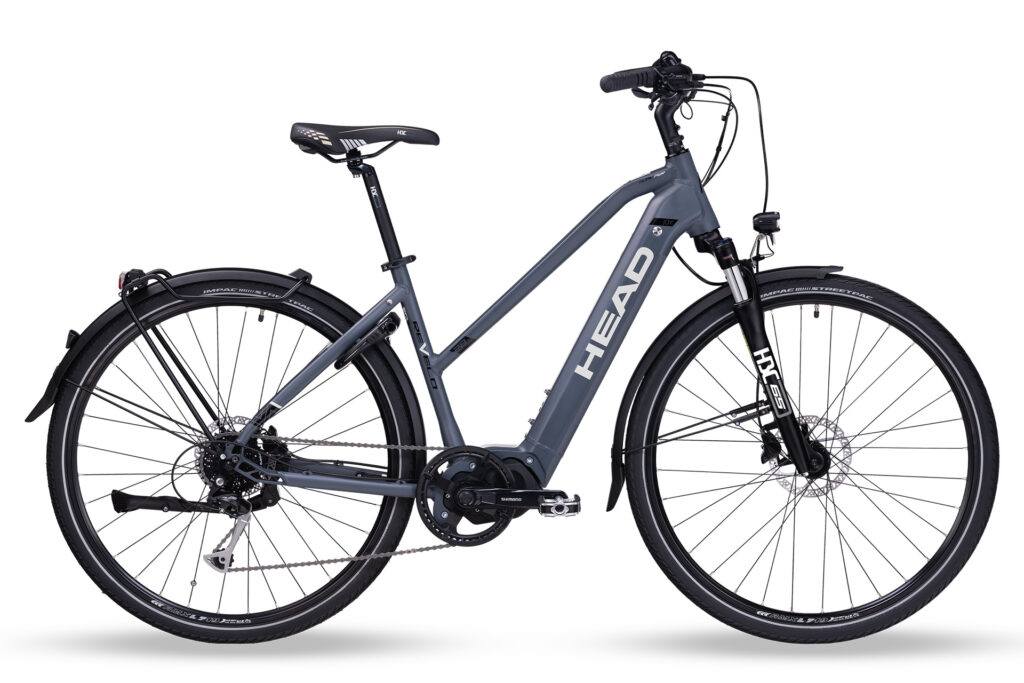

E Revelo 2.0 joy
HIGHLIGHTS
- - Motor: Shimano STePS EP600
- - Battery: BMZ
- - Frame: Alloy 6061, sizes: 46/50 cm

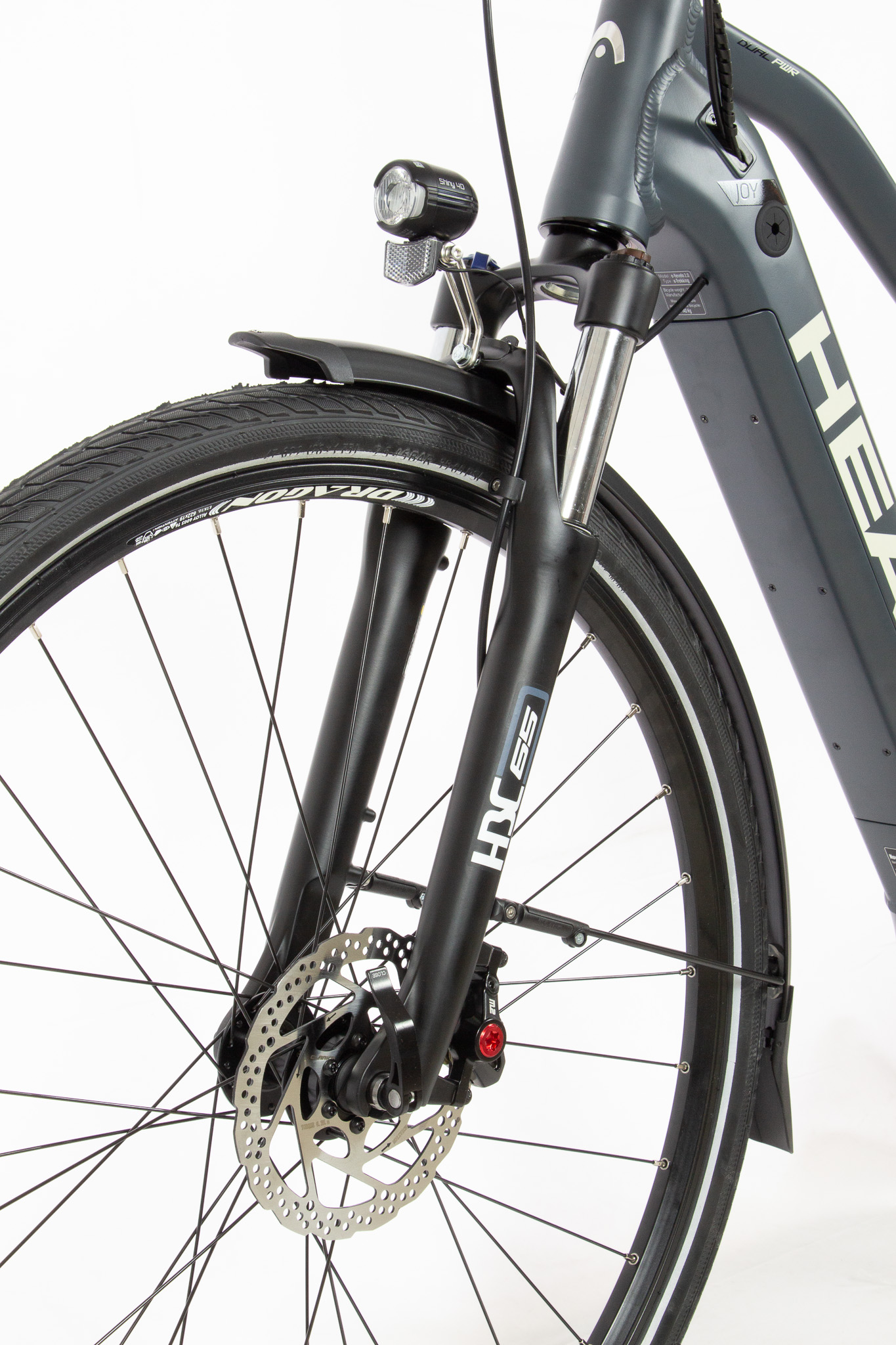

- - Fork: Rigit Fork

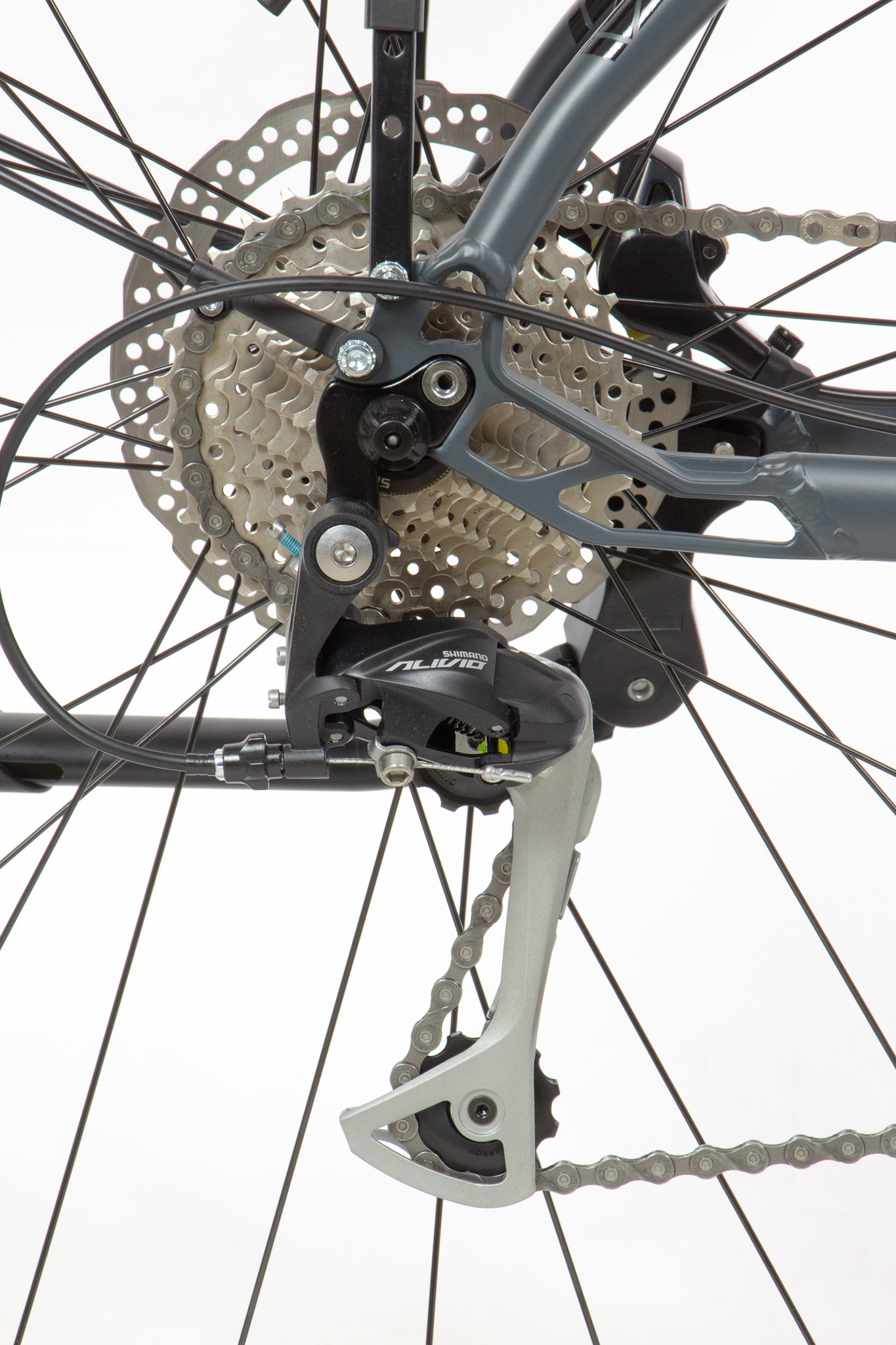

- - Rear derailleur: Shimano CUES RD-U3020 GS
- - Wheels: 28"
- - Weight: 23.9 kg
- - Colors:
SPECIFICATION
FRAMESET
Frame: Alloy 6061, sizes: 46/50 cm

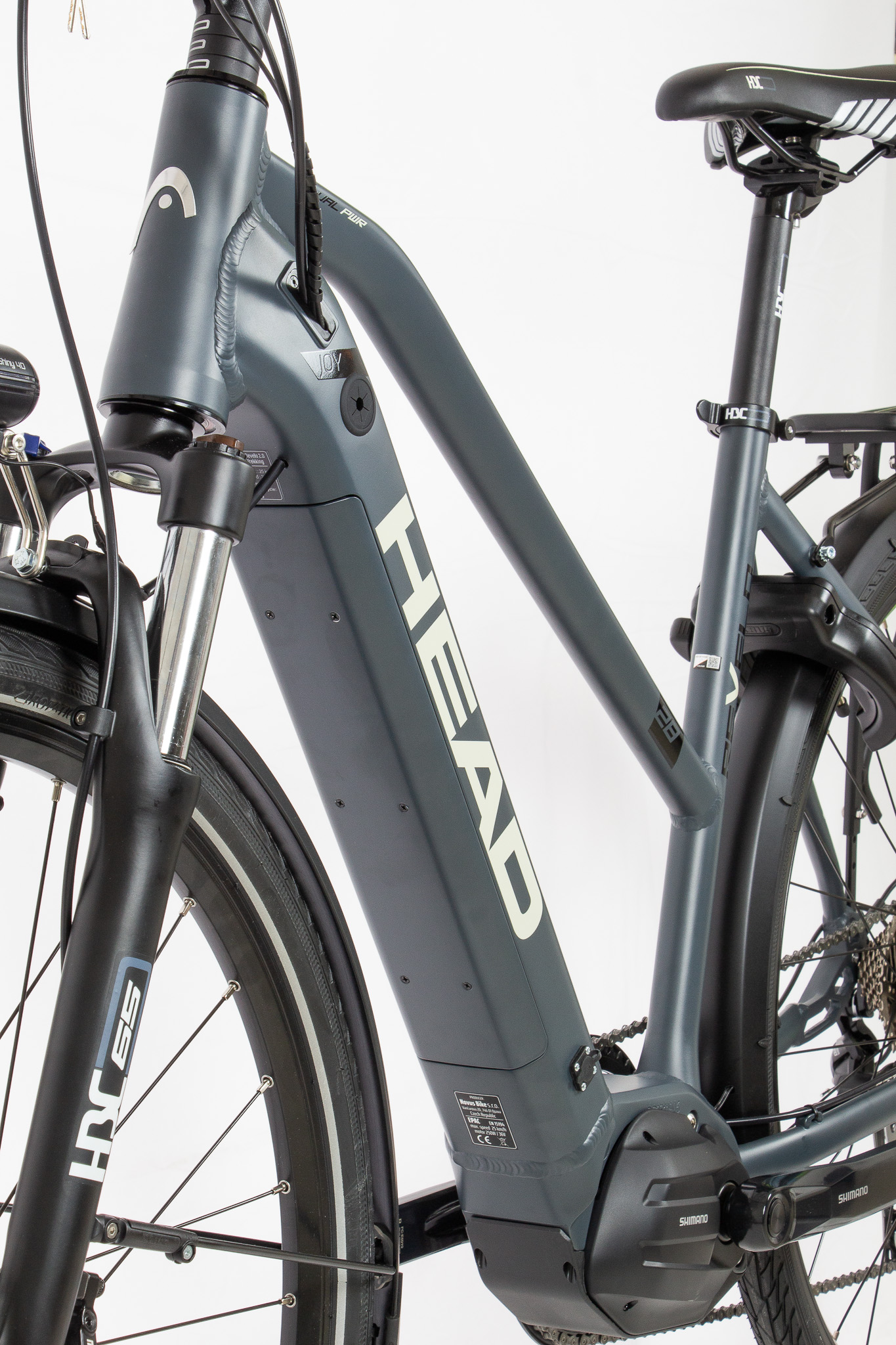

Integrated batteryBMZ Downtube V10 10s4p 36V 20 Ah V10, internal cable routing, hydro-formed tubes, heat-treated
Headset: Neco H386E
Sealed bearings
MOTOR
Motor: Shimano STePS EP600
Power 250W, max torque: 85Nm, max support up to 200%
Battery: BMZ
BMZ Downtube V10 10s4p 36V 20 Ah V10
DRIVETRAIN
Crankset: Shimano STePS FCEM600
Chainring: 44t, length: 175mm
Chain: Shimano CNLG500
9 speed
WHEELS
Front hub: Formula DC20
QR, 100mm
Rear hub: Formula DC22
QR, 135mm
Tires: Impac STREETPAC+RT;
28×1,75
COMPONENTS
Brakes: RUSH BH-M286 2piston

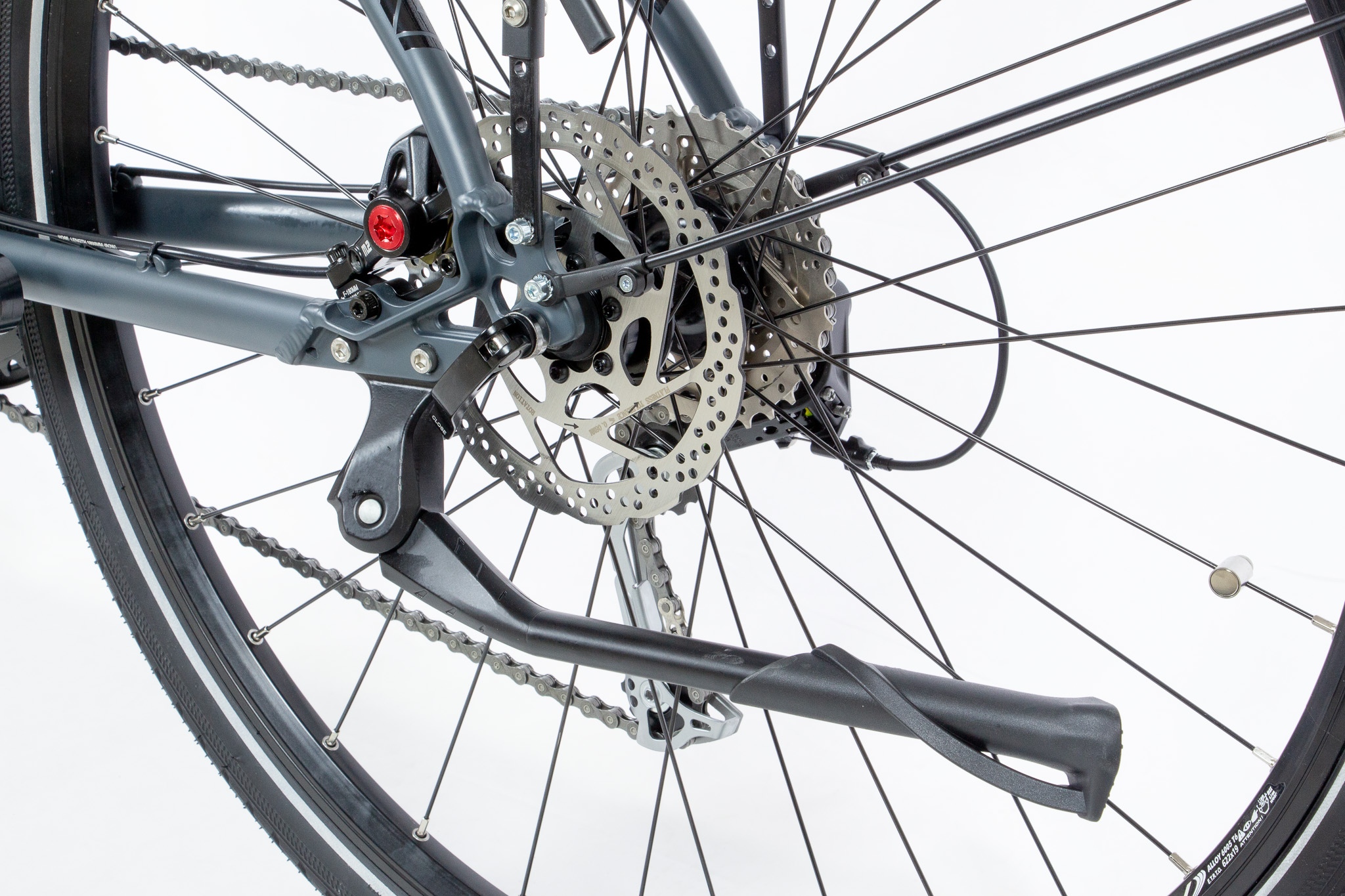

Disc brakes: 160/160mm
Handlebar: HBC
Width: 660mm, bended, 31.8mm
Stem: HBC
Length: 60mm, 31.8mm
Saddle: HBC
Rails: Cr-Mo
Seatpost: HBC VL3389
Length: 350mm, 27.2mm

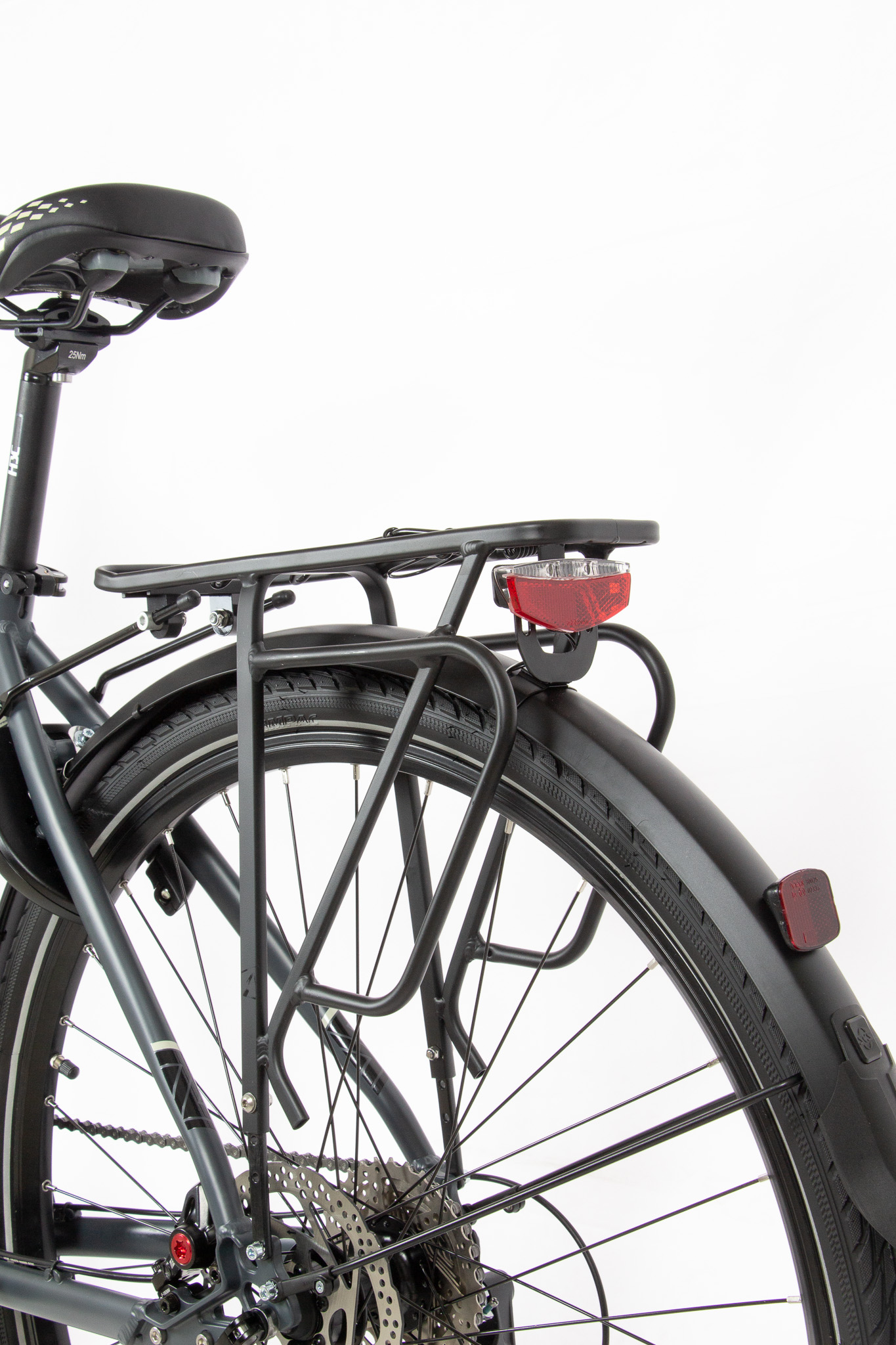

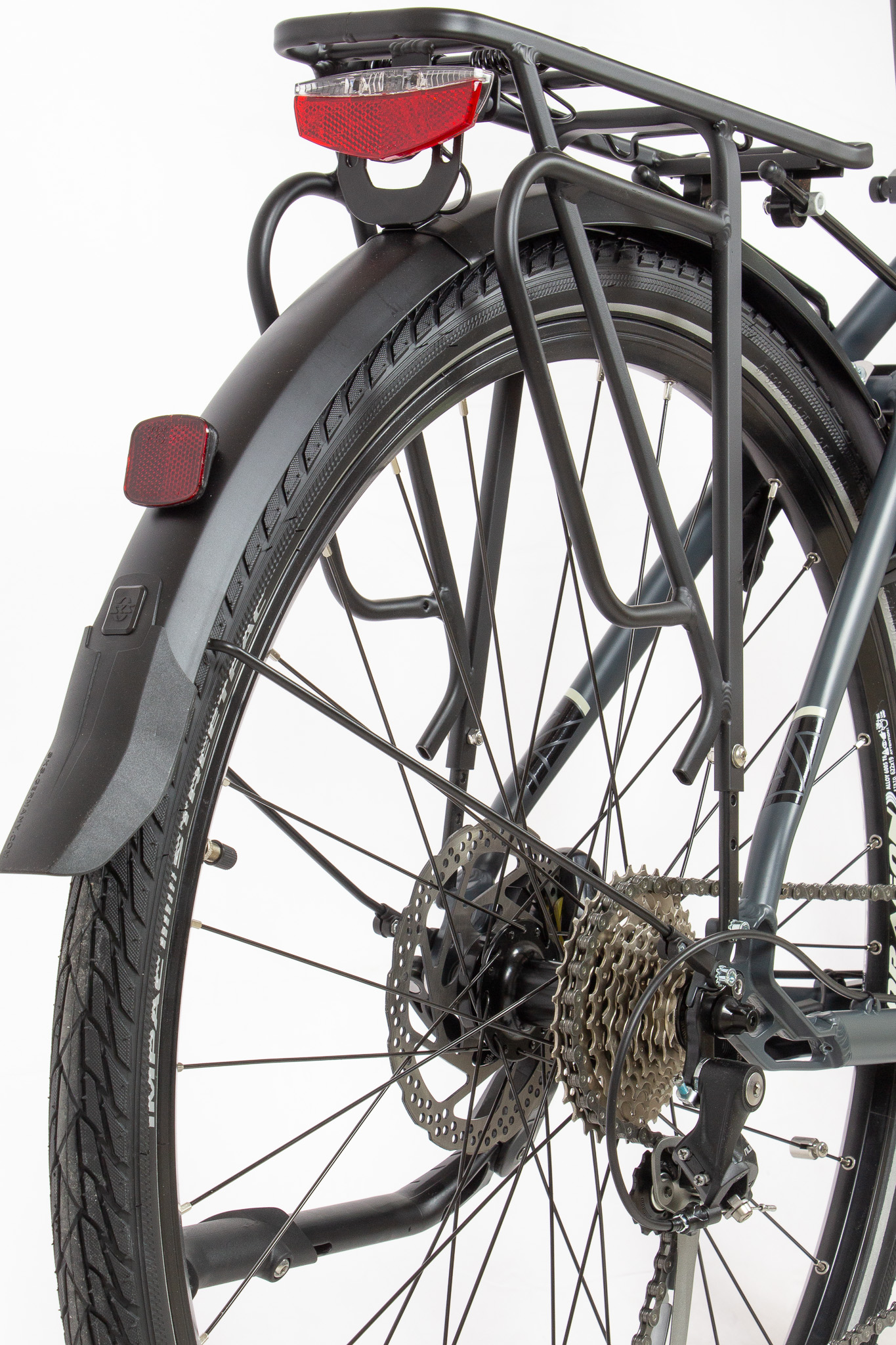

Carrier: SKS Infinity GT3
Integrated
Based on components availability HEAD Bike reserves the right to vary specifications, including colors, with or without notice. Major as well as minor changes may be involved. Bike and frame weights are based on pre-production painted frames at the time of publication. The range of the e-bike depends on many factors such as the rider’s weight, the track profile, the level of assistance, gear settings, the wind, etc., so the information is indicative and may vary. Consult your Distributor or Dealer for details regarding the specifications of any featured product.
GEOMETRY
FIND YOUR SIZE
Your height:
Choose your height
Recommended bike size:
*The recommendation covers the most common body types. Contact your local dealer if you need more assistance.
medium size - 46cm
large size - 50cm
x-large size - 54cm
