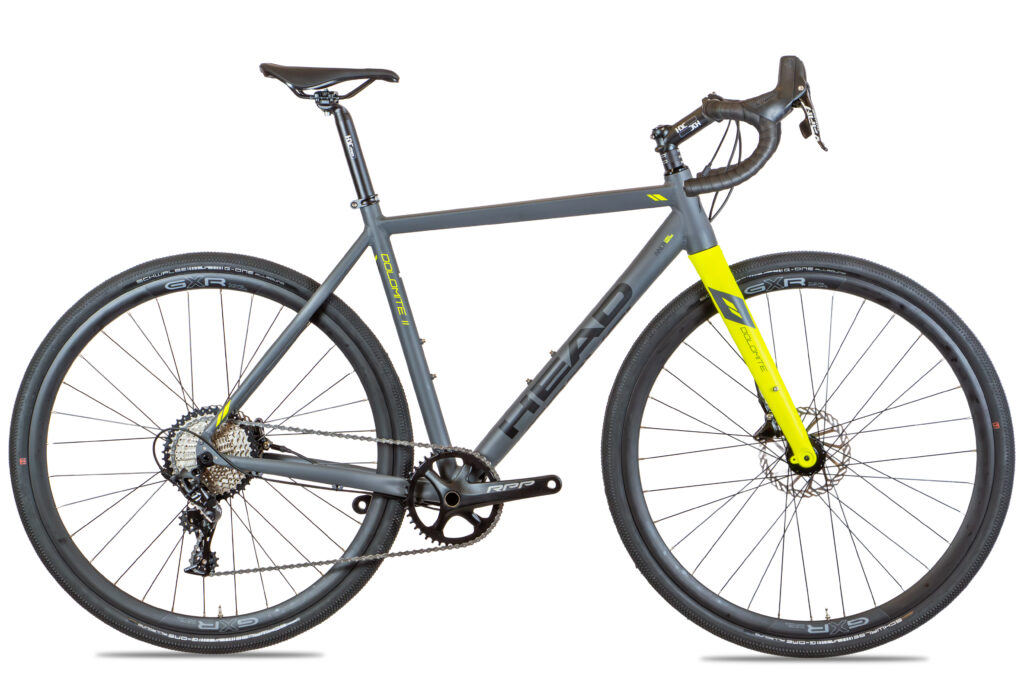

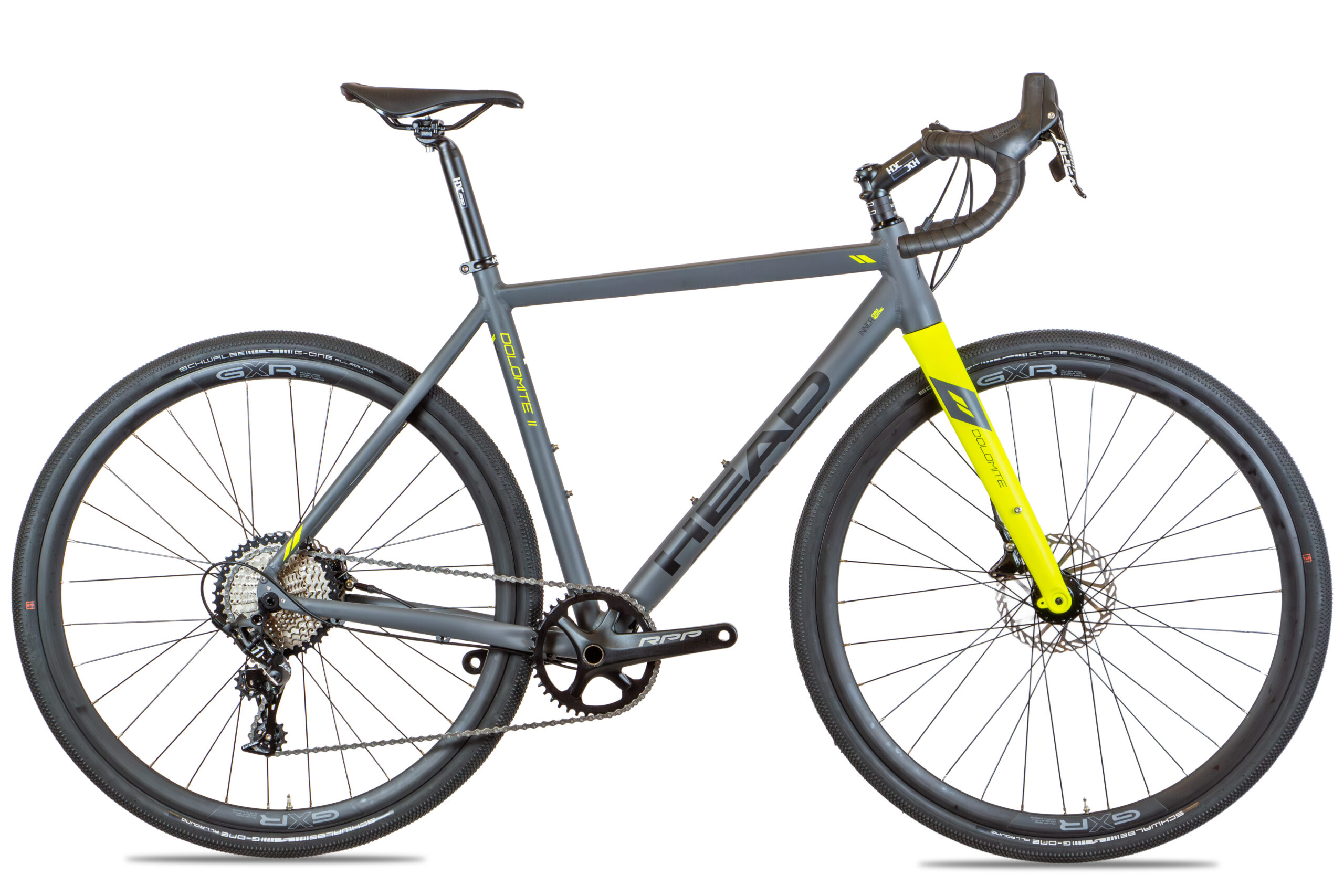

Dolomit 2.5
HIGHLIGHTS
- - Frame: Alloy 6061
- - Fork: Alloy
- - Rear derailleur: Sram Apex 1x11 speed
- - Wheels: 28"
- - Weight: 11.3 kg
- - Colors:
SPECIFICATION
FRAMESET
Frame: Alloy 6061
TPR, DB, Size : 54,58 cm
Fork: Alloy
Alu 12x100mm TPR
Headset: Neco H373M
Sealed bearings
DRIVETRAIN
Shifters: Sram Apex 1 1x11
11 Speed
Crankset: Prowheel RPR-FD16S-TT 42t
175mm 11 Speed
Chain: KMC X11
12 speed
WHEELS
COMPONENTS
Brakes: SRAM APEX 1
Disc brakes: 160/160mm
Saddle: HEAD-12221, 242x145mm
Rails: Cr-Mo
Seatpost: HBC
HBC 350/31.6mm
Based on components availability HEAD Bike reserves the right to vary specifications, including colors, with or without notice. Major as well as minor changes may be involved. Bike and frame weights are based on pre-production painted frames at the time of publication. The range of the e-bike depends on many factors such as the rider’s weight, the track profile, the level of assistance, gear settings, the wind, etc., so the information is indicative and may vary. Consult your Distributor or Dealer for details regarding the specifications of any featured product.
GEOMETRY
FIND YOUR SIZE
Your height:
Choose your height
Recommended bike size:
Recommended sizes refer to the horizontal length of the top tube (TT), please check the bike geometry table.
*The recommendation covers the most common body types. Contact your local dealer if you need more assistance.
small size - 50-54cm
medium size - 53cm-56cm
large size - 55cm-58cm
x-large size - above 56cm
