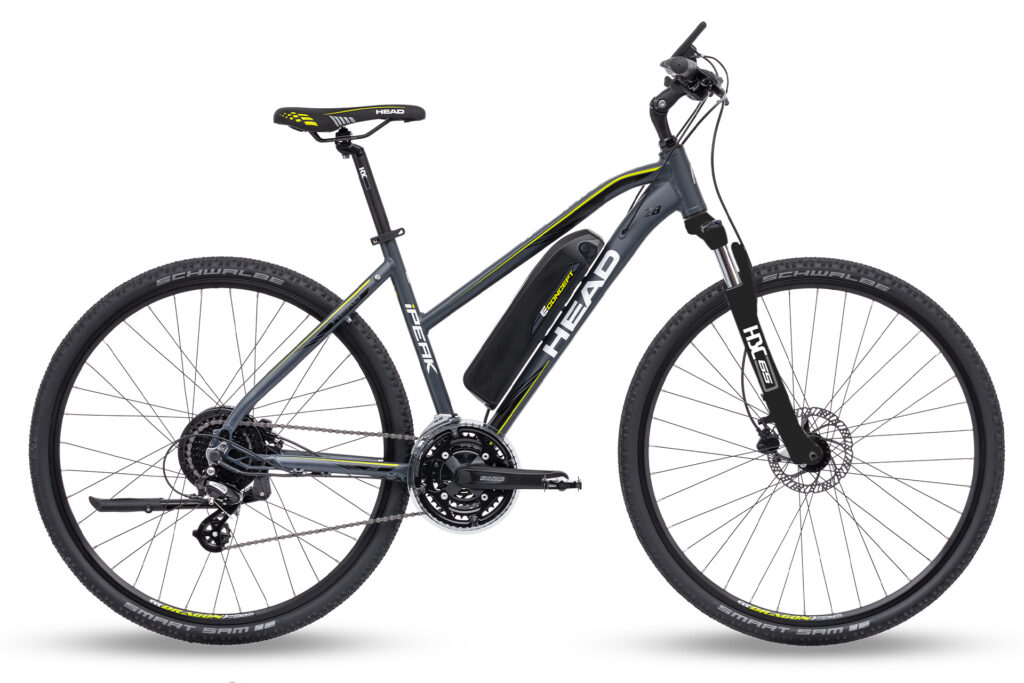

E-I-PEAK RM JOY
HIGHLIGHTS
- - Motor: Bafang RMG020
- - Battery: Greenway ZZ98
- - Frame: Alloy 6061, sizes: 46/50/54cm
- - Fork: Zoom 187D AMS HLO
- - Rear derailleur: S-Ride RD-M300
- - Wheels: 28"
- - Colors:
SPECIFICATION
FRAMESET
Frame: Alloy 6061, sizes: 46/50/54cm
Internal cable routing, hydro-formed tubes, heat-treated
Fork: Zoom 187D AMS HLO
Travel: 65mm, lock-out
MOTOR
Motor: Bafang RMG020
Rear hub motor, max. torque: 45Nm
Battery: Greenway ZZ98
Capacity: 504Wh
DRIVETRAIN
Rear derailleur: S-Ride RD-M300
8 speed
Crankset: Prowheel TY-CM02
Chainrings: 48-38-28t, length: 175mm
Chain: KMC Z8
8 speed
WHEELS
Front hub: Formula DC20
QR, 100mm
Rear hub: Bafang RMG020
Motor in rear hub, 135mm
Tires: Impac SmartPac
28×1.6″
COMPONENTS
Brakes: Clarks Clout 160/160mm
Disc brakes: 160/160mm
Handlebar: HBC
Width: 660mm, 25.4mm
Stem: HBC
HBC 46cm-85mm, 50cm-95mm, 54cm -105cm, 25.4mm
Saddle: HBC VL-4333
Rails: Cr-Mo
Seatpost: HBC
Length: 350mm, 27.2mm
Based on components availability HEAD Bike reserves the right to vary specifications, including colors, with or without notice. Major as well as minor changes may be involved. Bike and frame weights are based on pre-production painted frames at the time of publication. The range of the e-bike depends on many factors such as the rider’s weight, the track profile, the level of assistance, gear settings, the wind, etc., so the information is indicative and may vary. Consult your Distributor or Dealer for details regarding the specifications of any featured product.
GEOMETRY
FIND YOUR SIZE
Your height:
Choose your height
Recommended bike size:
*The recommendation covers the most common body types. Contact your local dealer if you need more assistance.
medium size - 46cm
large size - 50cm
x-large size - 54cm
